Arc Series

The Arc Series delivers precision, power, and performance for professional sound reinforcement. Designed for large venues and touring systems, these line array speakers provide unmatched clarity and coverage.

Arc Series – Precision Line Array Performance

The Lextronics Arc Series sets a new benchmark in professional audio, combining power, precision, and scalability. Engineered for large-scale concerts, arenas, and touring applications, the Arc Series ensures pristine sound quality with consistent coverage across every seat.

Arc 1: 3-Way Line Array Speaker delivering 2400W of program power for powerful, full-range sound and outstanding projection.

Arc 2: 2-Way Line Array Speaker with 1200W of program power, optimized for clarity, balance, and versatility in any performance setup.

Crafted with advanced transducer technology and robust enclosures, the Arc Series is built for reliability, making it the ideal choice for professional touring and fixed installations.

Full-Range Sound
FOH or Fill Configuration
Precision-Tuned Components
Powerful, Balanced Output
Elite 12

Technical Specifications


Professional-grade components and precision engineering for outstanding performance


Speaker Specifications:

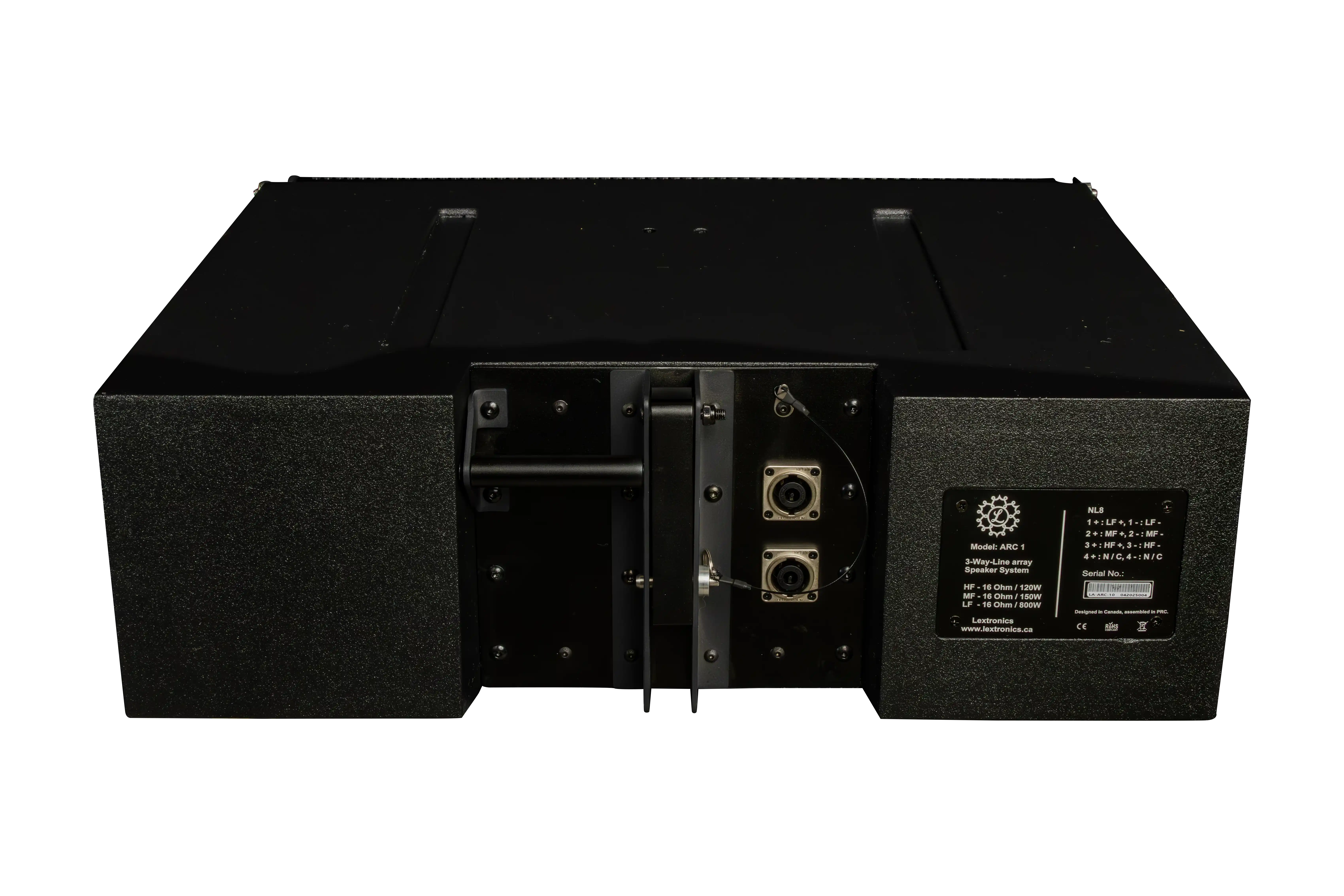

  • Model No.ARC 1
  • System Type3-Way Line Array Speaker
  • Powered or PassivePassive
  • Program Power (watts)Rated Power: LF 800W / MID 130W / HF 120W RMS
    Peak Power: LF 2400W / MID 390W / HF 360W RMS
  • Impedance16 Ohm
  • Max SPL (dB)138dB Continuous
  • Frequency Response50 Hz – 16 KHz (±3dB)
  • Crossover Frequency (Hz)According to preset data of the DSP
  • LF Woofer2 × 10 inch Neodymium
  • MID Driver1 × 8 inch Neodymium
  • HF Driver2 × 44mm Compression Driver with 1" Exit
  • HF Dispersion (°H × °V)100° × 10°
  • Signal Input2 × NL8MP (1+1– LF / 2+2– MID / 3+3– HF)
  • Cabinet MaterialBirch Plywood
  • Cabinet ColorBlack Polyurea Coating
  • GrillePowder-Coated Perforated Steel
  • Hanging PartWith Customized Hanging Bracket
  • Handles2 × Side Bar Handles
  • Net Weight35 kg
  • Cabinet Size (H × W × D)303 × 700 × 496 mm
  • Packaging Size (H × W × D)443 × 740 × 536 mm
