Elite 12

Elite 12 Active delivers premium sound, power and portability-perfect for live shows, DJ’s and install in any venue

AVAILABLE MODELS:
AK-Built in full analog amplifier.
AS-Built in Class D amp & programmable DSP.
AA-Built in Class D amp, DSP & Onboard display.

Learn More Get Quote

Power and Precision in Sound Engineering

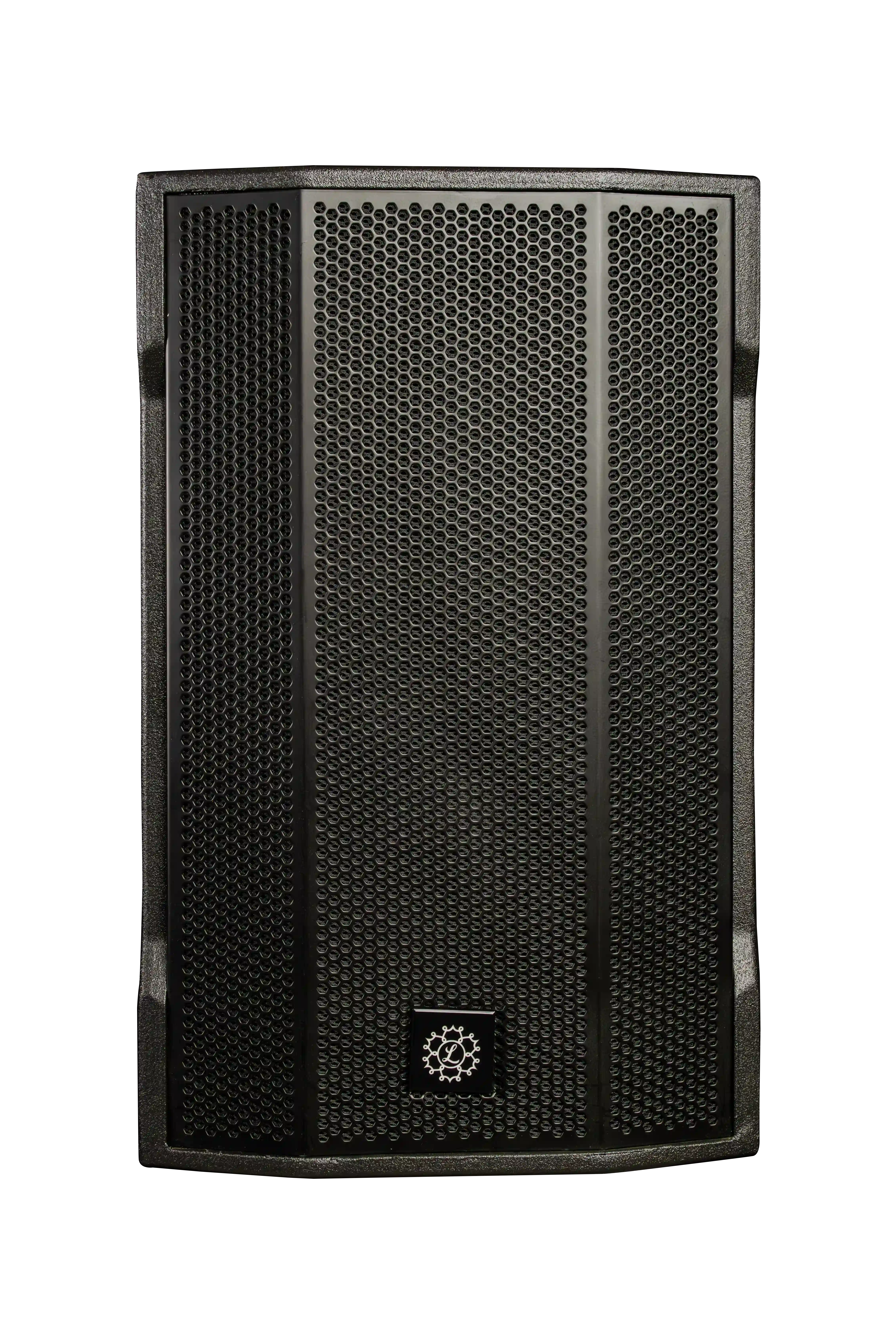

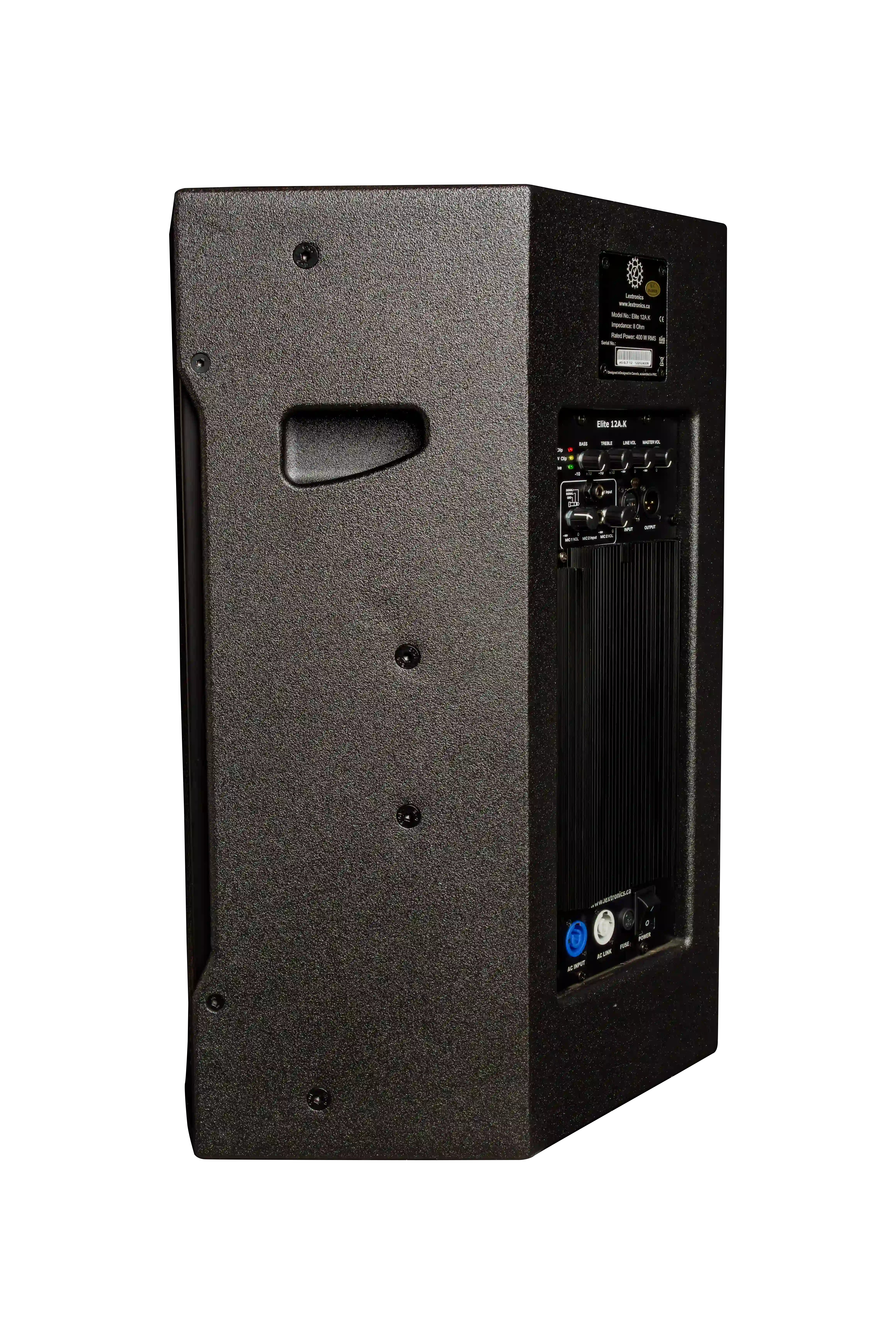

The Lextronics Elite 12 Active is a powerful point-source full-range loudspeaker engineered for exceptional clarity and performance. Designed for use as a main Front-of-House (FOH) system or as side and rear fills, it delivers consistent coverage and crystal-clear sound across any venue.

Crafted with premium components and precision tuning, the Elite 12 combines high-output performance with an elegant, road-ready design. Whether for live concerts, touring, or fixed installations, it ensures a dynamic listening experience that brings every detail of your audio to life.

Full-Range Sound
FOH or Fill Configuration
Precision-Tuned Components
Powerful, Balanced Output
Elite 12

Technical Specifications


Professional-grade components and precision engineering for outstanding performance


Speaker Specifications:

  • Model No.Elite 12A
  • System Type2-Way Point Source Speaker
  • ConfigurationPowered
  • Program Power400 W RMS / 1200 W Peak
  • LF Woofer1 × 12 inch
  • HF Driver1 × 44 mm Compression Driver (1″ Exit)
  • HF Dispersion90° (H) × 80° (V)
  • Signal InputXLR Input
  • Crossover Frequency1.55 kHz
  • Impedance8 Ohm
  • Frequency Response65 Hz – 18 kHz (±3 dB)
  • Maximum SPL130 dB Continuous
  • Cabinet MaterialBirch Plywood with Black Polyurea Coating
  • GrillePowder-Coated Perforated Steel
  • Mounting1 × Bottom Pole Mount Adaptor, M8 Eye Bolts
  • Handles2 × Side Bar Handles
  • Net Weight26 kg
  • Cabinet Size (H × W × D)385 × 369 × 610 mm
  • Packaging Size (H × W × D)460 × 445 × 670 mm
